CK6180A Wheel repair lathe

UpdateTime：2016-3-29 22:19:40
Views：
Brand：HaiShu
Model：CK6180A

Order Hotline：+86-538-8606169

Main features ◆Achieve the wheel surface profile measurement and data collection and Program Optimization, ◆Automatic precision repair and machining in accordance with the curve of the wheel surface.

Details

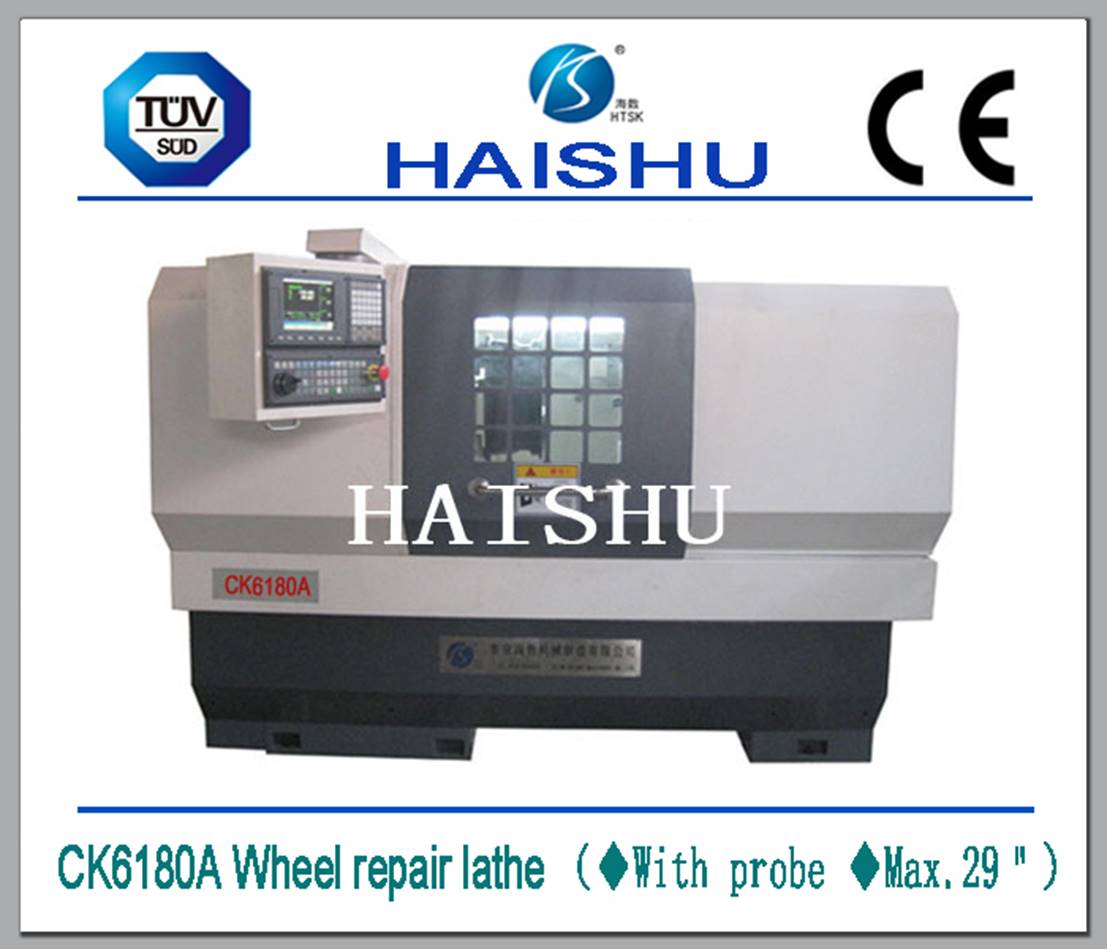

CK6180A Wheel repair lathe





1．Technical parameters

Project name	Unit	Technical paramaters
Max. turning diameter over the bed	Inch	31”（φ800mm）
Max. diameter of the wheel	Inch	29＂
Max. length of the workpiece	mm	750
Max. measured depth of the probe	mm	100
Max. machining depth of the tool	mm	100
Machning accuracy		IT6-IT7
Surface roughness	um	Ra0.8~0.1
Main transmission form		Independent spindle; frequency conversion stepless
Range of spindle speed	rpm	150~2000
Main motor power	kw	7.5
Fast-moving feed	mm/min	X - axis:5000   Z - axis:8000
Repeat positioning accuracy	mm	X - axis:0.01    Z - axis:0.015
Standard accessories		4 station electric tool
Repeat positioning accuracy(mm)	mm	0.008
Section of turning tool(mm)	mm	25×25
The size of the machine (L×W×H)	mm	2450×1820×1850
Net weight of the machine(kg)		3000

2. Main features

◆Achieve the wheel surface profile measurement and data collection and Program Optimization,

◆Automatic precision repair and machining in accordance with the curve of the wheel surface.

◆Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.

◆Spindle frequency stepless speed.

◆X / Z axis servo drive.

◆Manual jaw self-centering chuck.

◆Machine guard full protection.

◆Automatic oil lubrication.

◆Diamond turning, to achieve high-precision smooth machining on wheel surface.

3. Uses

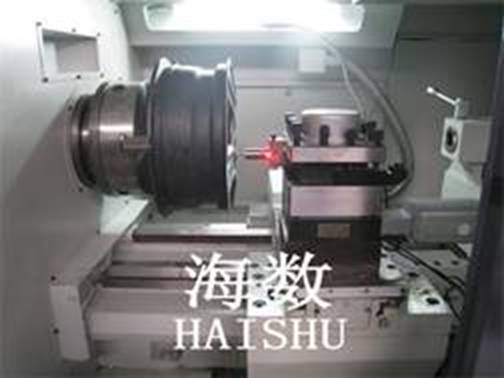

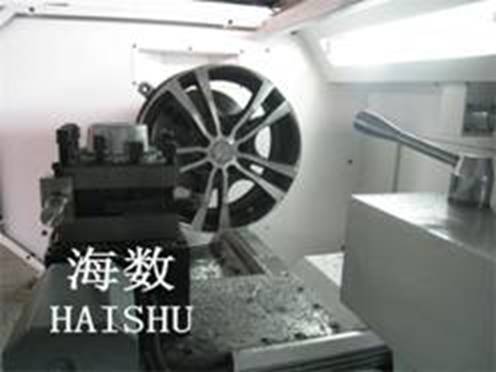

◆The machine tool suitable for High-precision turning and repair processing for surface of car wheel.

◆The machine tool has also the function of the general CNC lathes.

“HAISHU”

wheel repair curve optimization software features

1、  The software has two-way curve optimization features of the X and Z direction, can achieve the curve optimization of the wheel face and circumference (rim) surfaces.

2、  According to the wheel CAD drawings, modified the curves be generated by collection points of the wheel surface.

modify the curve of measurement acquisition point generating of wheel surface.

3、  According to the point of collection from the surface of the wheel, you can automatically generate a curve, you can also manually modify and optimize the curve.

4、  The software can display multiple languages, adapt to customers in different countries.

5、  The software is self-developed, design can be personalized according to customer requirements.

6、  The software requires no special installation, open to use, operation is very simple.

7、  The software enables to a self-set for safety distance of advance and retreat knife.
