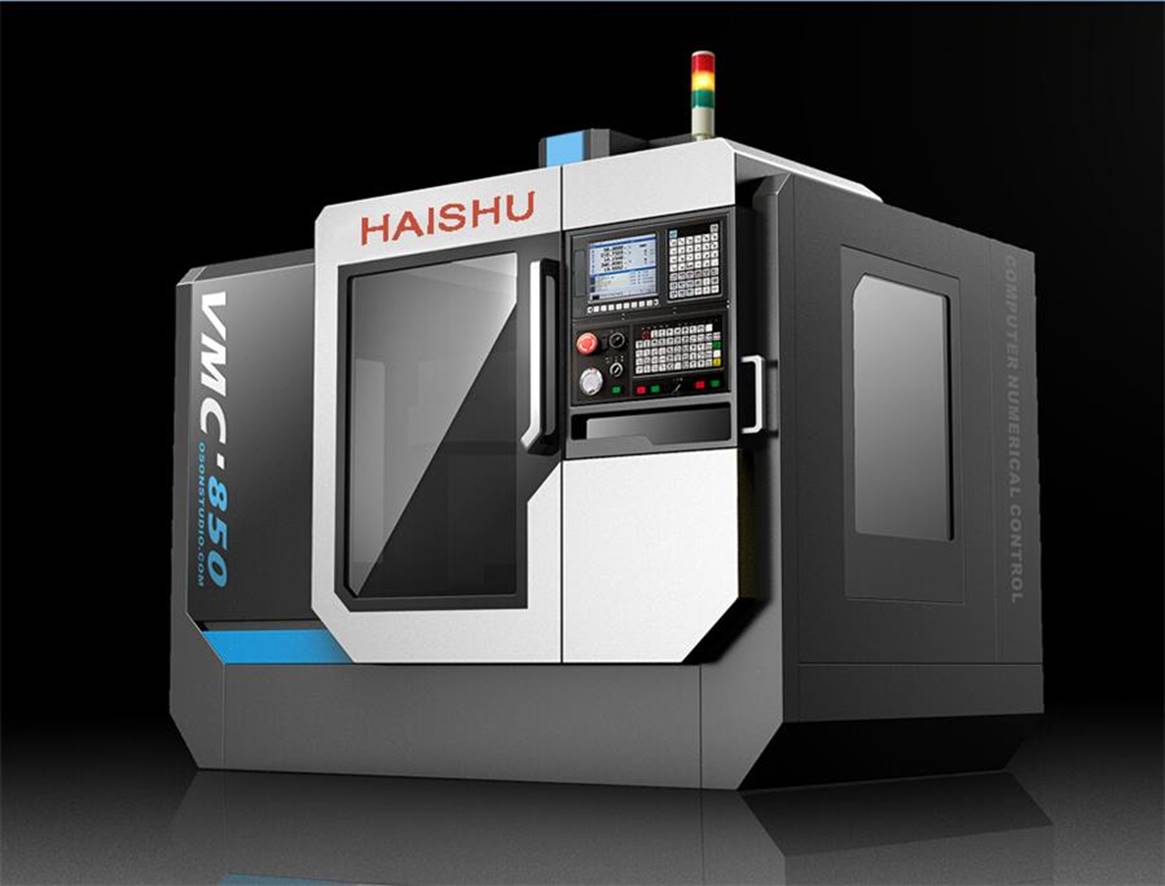

VMC850 5-Axis vertical machining center
|
Item |
Detail |
Unit |
parameter | |
|
Stroke |
Moving range X、Y、Z |
mm |
850×450×500 | |
|
Nose to a rotary table (horizontal) distance |
mm |
150-650 | ||
|
Spindle center to column guideway surface distance |
mm |
560 | ||
|
Feed |
Fast moving speed X、Y、Z |
m/min |
30/30/24/min | |
|
Cutting feed rate X、Y、Z |
mm/min |
10~15000mm/min | ||
|
Spindle |
Spindle taper |
BT40 | ||
|
Spindle speed |
r/min |
40~6000rpm | ||
|
Main motor power |
kw |
AC servo 7.5 | ||
|
Maximum torque |
nm |
70 | ||
|
Magazine |
Tool storage capacity |
把 |
16 | |
|
Maximum tool weight |
kg |
8kg | ||
|
Maximum tool dimensions |
mm |
φ130×300 | ||
|

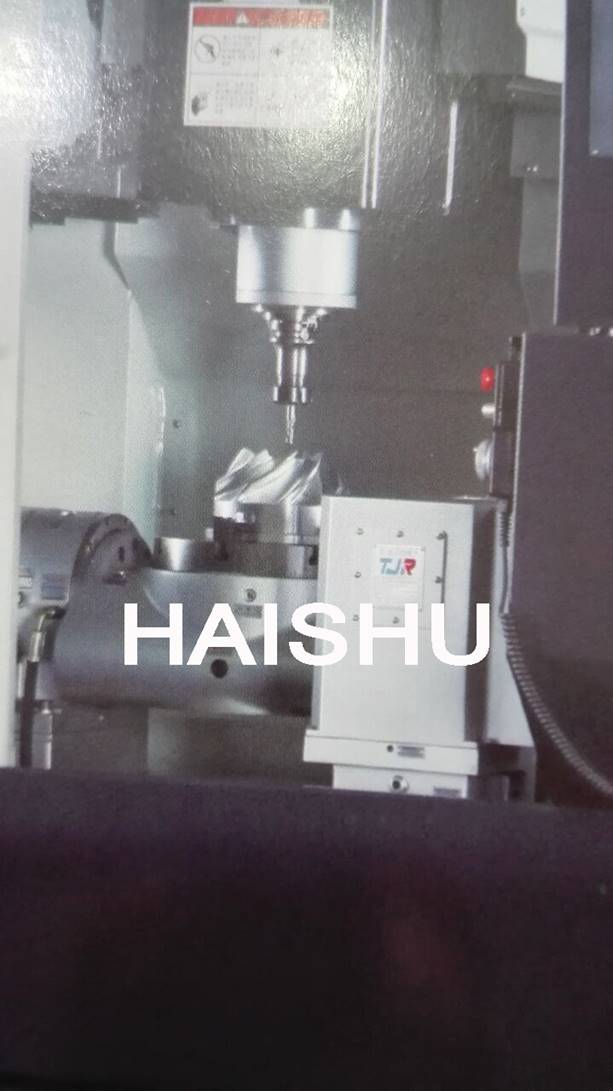

Rotary shaft |
CNC rotary table diameter |
mm |
φ255 | |
|
A-Axis inclination angle |
° |
±100° | ||
|
Center hole |
mm |
φ80H7 | ||
|
T-slot |
mm |
12H7 | ||
|
Turntable maximum load |
Kg |
Level：100； Slant：75 | ||
|
Accuracy |
positioning accuracy |
mm |
X/Y/Z |
±0.005/300 |
|
A |
50 ″ | |||
|
C |
20″ | |||
|
Repeatability positioning accuracy X/Y/Z/A/C |
mm |
X/Y/Z |
±0.003 | |
|
A |
8″ | |||
|
C |
4″ | |||
|
Shape size |
L×W×H |
mm |
2500×2300×2300 | |
|
Net weight |
kg |
4800 | ||
|
Gross weight |
kg |
4900 | ||
