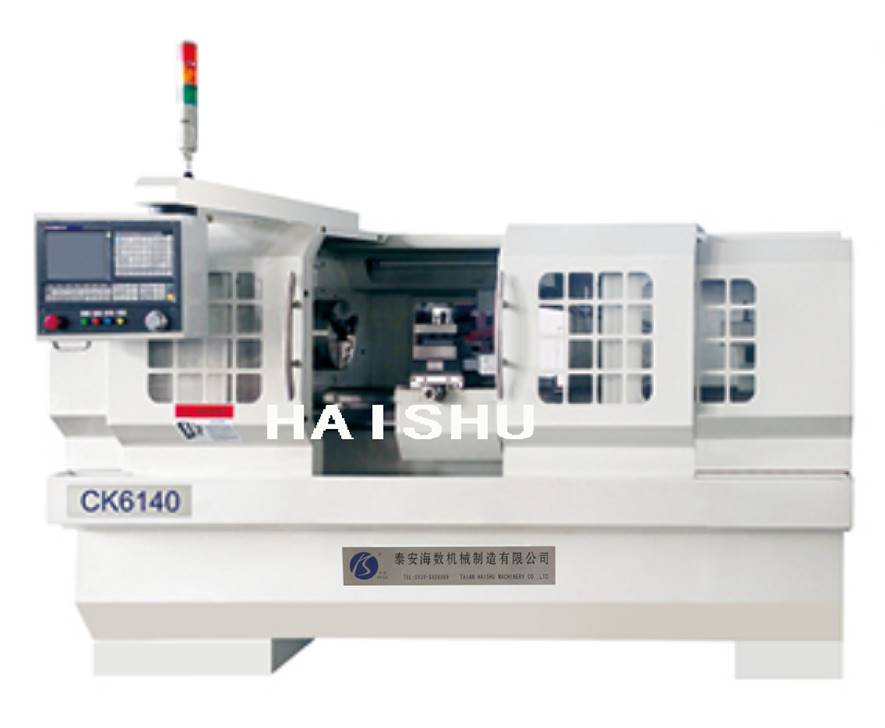

CK6140 CNC Lathe
|
Item |
Unit |
Technical parameters |
|
CK6140 | ||
|
Max. turning diameter over bed |
mm |
φ400 |
|
Max. rotation diameter over pallet |
mm |
φ240 |
|
Max. turning length |
mm |
750 （550/1000/1500 Optional） |
|
Rail width |
mm |
330 |
|
Spindle speed range |
r/min |
60~600/280~2000 |
|
Spindle head form |
A2-6 | |
|
Spindle bore |
mm |
φ60 |
|
Spindle hole outside taper |
MT6 | |
|
Chuck diameter |
mm |
10＂（φ250） |
|
Main motor power |
kw |
5.5 |
|
Turret maximum stroke |
mm |
X：230 Z：750 |
|
Fast-moving feed |
mm/min |
X：4000 Z：7000 |
|
Repeat positioning accuracy |
mm |
X：0.01 Z：0.015 |
|
Dia. of tailstock quill |
mm |
φ60 |
|
Tailstock quill stroke |
mm |
120 |
|
Taper of tailstock quill |
MT4 | |
|
Repeat positioning accuracy |
mm |
0.008 |
|
Min. unit for X/Z axis |
mm |
0.001 |
|
Turret |
4 stations | |
|
Section of turning tool |
mm |
25×25 |
|
Size（L×W×H） |
mm |
2220×1540×1650 |
|
Net weight |
kg |
1800 |
Standard configuration:
◆CNC system: KND
◆Manual chuck ,
◆Manual tailstock,
◆Vertical four-station electric turret,
◆Automatic lubrication system,
◆Turning the cooling system.
Select configure
◆CNC system: GSK, Siemens, Fanuc, etc.,
◆Hydraulic chuck (solid and hollow), pneumatic chuck,
◆Hydraulic tailstock, pneumatic tailstock,
◆Automatic feeder,
◆Horizontal six-station turret, eight-station turret, tool row.
