Item

Unit

Technical parameters

CNC550B-1

1

Max.rotation diameter on lathe’ body

mm

550

2

Max. length of processing

mm

1500

3

Max. diameter of processing

500

4

Spindle taper type

A11

5

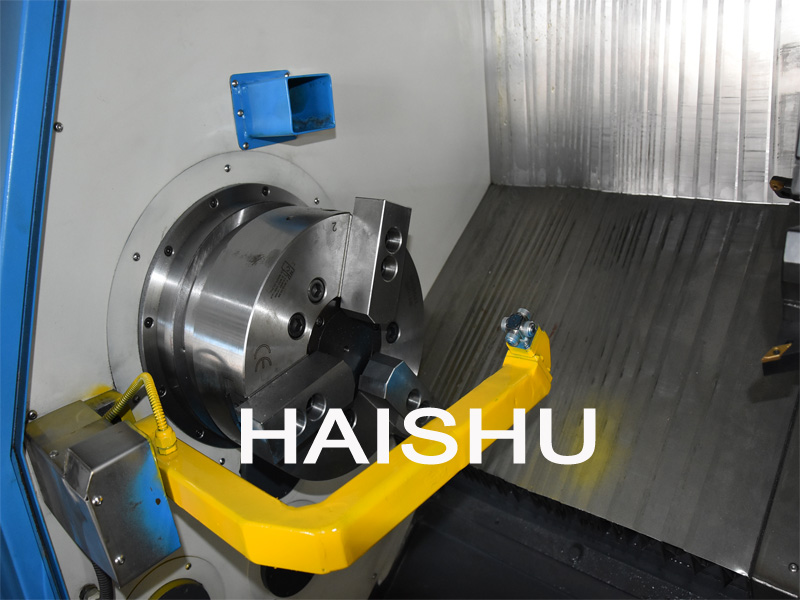

Hydraulic chuck

mm

ø300 (12＂)

6

Spindle front bore taper

1:20

7

Spindle through hole

mm

70

8

Spindle speed change form

Three-level gear box, hydraulic automatic conversion, frequency regulation speed.

9

Spindle speed range

Rpm

Factory settings: 20-2000,

 >2000  (Optional)

10

X/Z fast moving speed

mm /min

10000

11

Spindle motor power

kW

30

12

X / Z axis servo motor maximum torque

N.m

27

13

Power supply

V

380±10%; 50 Hz ± 1 Hz

14

Turret conversion time (1 station)

sec

1.6 (horizontal 8 station)

15

Turret repeat positioning accuracy

mm

0.005'

16

X-axis travel

mm

350

17

Z-axis travel

mm

1850

19

Turret type

Horizontal 8 station

20

Tailstock sleeve diameter / stroke

mm

80/100

21

Tail hole taper

Morse

5

22

Tailstock assembly moving form

Manual and electric

23

Tailstock sleeve moving form

Hydraulic

24

Tool handle size

mm

25*25

25

Machine size

mm

5100*1750*1900

26

Package size

  mm

5230*1910*2100

27

Machine net weight

kg

7300

28

Machine gross weight

kg

8000
