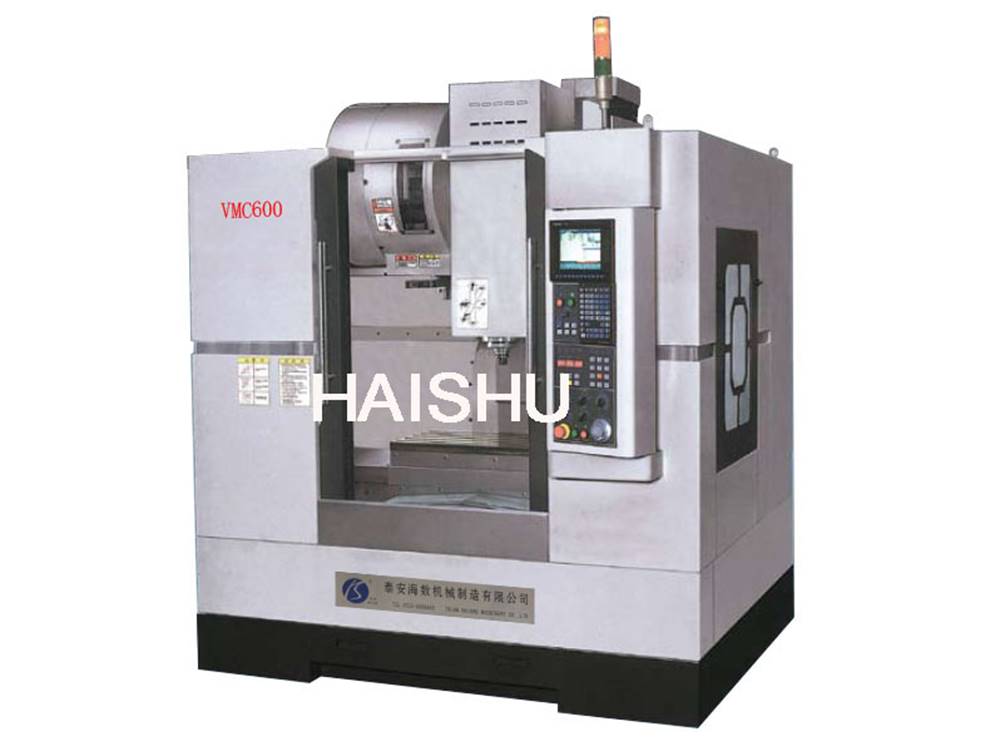

VMC600
High speed vertical machining center
1. Main features
◇X, Y, Z three axis rail, high speed, high efficiency, high precision, suitable for batch processing of 3C products.
◇Taiwan high-speed, high-precision spindle (10000rpm).
◇Taiwan 16-capacity disc high-speed tool magazine. Tool change time is 1.1 seconds.
2. Specifications
|
Item |
Unit |
Specifications |
|
Table travel(X、Y、Z) |
mm |
600×400×400 |
|
Table size |
mm |
750×420 |
|
Number/Width/Distance of T-slot |
mm |
3-14-100 |
|
Max.load of table |
kg |
200 |
|
Distance from spindle nose to table surface |
mm |
128～528 |
|
Distance from spindle axis to column guideway |
mm |
480 |
|
Taper of spindle |
BT40 | |
|
Spindle speed range |
r/min |
10000 |
|
Spindle motor power |
kw |
(AC servo)7.5 |
|
Rapid traverse speed(X、Y、Z) |
m/min |
48/48/60 |
|
Cutting feed speed(X、Y、Z) |
mm/min |
2～10000 |
|
Tool magazine capability |
qty |
16 |
|
Max.dimension of tool |
mm |
φ80×120 |
|
Max.weight of tool |
kg |
3.5 |
|
Positioning accuracy |
mm |
±0.005/300 JIS |
|
Repeat positioning accuracy |
mm |
±0.003 JIS |
|
Min. time of change |
s |
1.1 |
|
Overall dimension (L×W×H) |
mm |
2000×1800×2200 |
|
Machine weight |
kg |
3360 |
3. Main configuration
Standard:
◇CNC system: GSK25i or M70A
◇RS232 Communication Interface;
◇Taiwan high-speed, high-precision spindle
◇Taiwan 16-capacity disc high-speed tool magazine.
◇Taiwan's precision ball screw.
◇Full outer stainless steel inner defense and protection.
Optional：
◇FANUC 0i MD or Siemens 828D.
◇CNC fourth axis， CNC fifth axis.
◇Automatic chip remo val system.
