技术参数
|

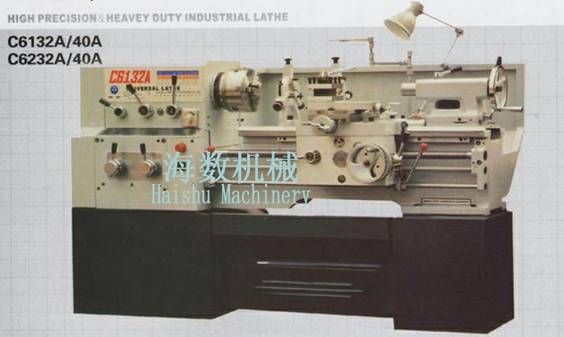

Model |
C6132A |
C6232A |
C6140A |
C6240A |
|
Center height |
180mm |
180mm |
202mm |
202mm |
|
Max. swing diameter over bed |
360mm |
360mm |
400mm |
400mm |
|
Max. swing diameter over carriage |
200mm |
200mm |
245mm |
245mm |
|
马鞍槽内回转直径 |
540mm |
585mm | ||
|
马鞍槽有效长度 |
200mm |
200mm | ||
|
大加工长度(两顶尖中心距) |
750mm、1000mm | |||
|
床身宽度 |
330mm | |||
|
主轴通孔直径 |
46mm/52mm | |||
|
主轴孔锥度 |
MT No.6 | |||
|
主轴转速范围 |
22~1600r/min | |||
|
横刀架短行程 |
240mm | |||
|
小刀架短行程 |
140mm | |||
|
尾座大行程 |
130mm | |||
|
尾座锥度 |
MT No.4 | |||
|
主电机功率 |
3/4kw | |||
|
公制螺纹种数范围 |
30种 0.4~20mm | |||
|
英制螺纹 |
35种 80~1T.P.L | |||
|
模数螺纹 |
0.25~10 M.P. | |||
|
径节螺纹 |
160~3 D.P. | |||
|
进给量级数 |
138 | |||
|
纵向进给范围 |
0.04~2.15mm | |||
|
横向进给范围 |
0.02~1.08mm | |||
|
机床净重 |
1300Kg/1400Kg | |||
|
机床外形尺寸（长×宽×高） |
2290/2575×1100×1465mm | |||
标准附件：
1、照明 2、冷却 3、三爪+接盘 4、变径套 5、油枪 6、扳手 7、挡屑板
特殊附件：
1、拨盘 2、四爪卡盘+接盘 3、花盘 4、中心架 5、跟刀架
