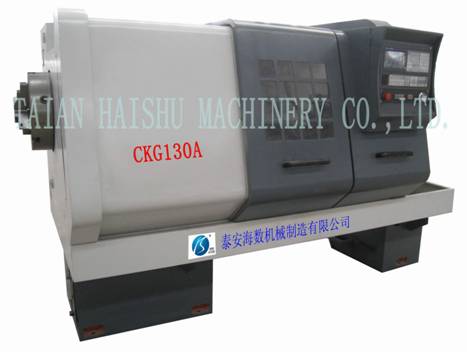

CKG130A/CKG160A CNC pipe thread lathe
CNC pipe thread lathe specification
|
Item |
Unit |
specification | |
|
CKG130A |
CKG160A | ||
|
Max swing diameter |
mm |
610 |
625 |
|
Maximum turning length |
mm |
1000 | |
|
Maximum processing outside diameter of pipe |
mm |
135 |
157 |
|
Spindle bore |
mm |
140 |
160 |
|
Number of spindle speeds |
Servo stepless speed change, 10~800rpm | ||
|
×/Z Servo motor torque |
N.m |
4/6 | |
|
Chuck form |
Three-jaw chuck φ400mm | ||
|
Turret form |
Four-station ，Vertical | ||
|
×/Z Rapid traverse |
m/min |
4/4 | |
|
Tailstock quill diameter |
mm |
75 | |
|
Tailstock quill stroke |
mm |
150 | |
|
Tailstock sleeve taper |
MT5 | ||
|
Spindle center to the height of the rail |
mm |
305 |
320 |
|
Main motor |
7.5KW（Servo motor），0-3000rpm | ||
|
Rail width |
mm |
390 |
490 |
|
Machine weight |
Kg |
2600 |
3200 |
|
Machine outline size (L × W× H) |
mm |
2650×1450×1700 |
2650×1550×1700 |
|
CNC system |
mm |
KND100Ti/GSK980TA/Siemens/Fanuc(Optional) | |
