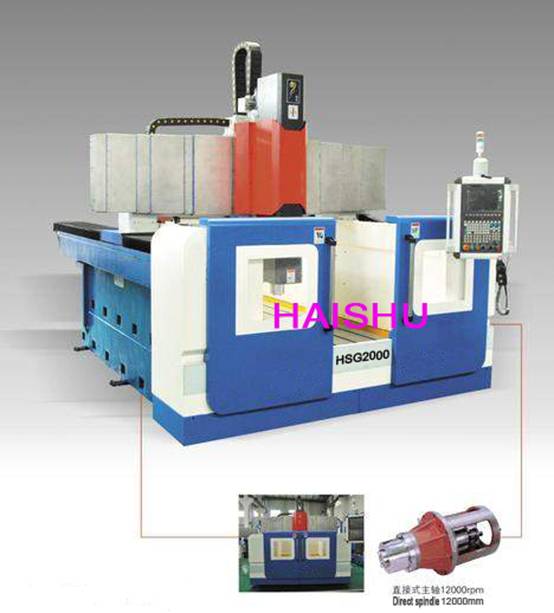

HS series moving beam type dual drive gantry high speed milling machine
1. Technical Parameters
|
Model |
Unit |
HSG1600 |
HSG2000 |
HSG2500 |
|
Table size |
mm |
1000×1600 |
1400×2000 |
1600×2500 |
|
T-slot |
mm |
22×5 |
22×7 |
22×7 |
|
X/Y/Z stroke |
mm |
1000/1600/700 |
1400/2000/700 |
1600/2500/700 |
|
X/Y/Z Rapid feed rate |
m/min |
15/15/10 |
10/10/6 |
15/15/12 |
|
X/Y/Z Drive power |
kw |
2.0/2.0×2/4.3（抱闸） |
3.0/3.0×2/4.4（抱闸） |
3.0/3.0×2/4.4（抱闸） |
|
Distance of spindle nose to table |
mm |
300-1000 |
300-1000 |
300-1000 |
|
Gantry width / height |
mm |
1400/1100 |
1800/1100 |
2000/1100 |
|
Direct mechanical spindle |
BT40 |
BT40 |
BT40 | |
|
Spindle power (servo) |
kw |
11 |
11 |
11 |
|
Max. spindle speed |
rpm |
12000 |
12000 |
12000 |
|
positioning accuracy |
mm |
±0.01/300 |
±0.01/300 |
±0.01/300 |
|
Repeatability positioning accuracy |
mm |
±0.01/300 |
±0.01/300 |
±0.01/300 |
|
X/Y/Z Straightness |
mm |
0.02/1000 |
0.02/1000 |
0.02/1000 |
|
X/Y/Z Verticality |
mm |
0.02/300 |
0.02/300 |
0.02/300 |
|
Total power |
kw |
22 |
25 |
25 |
|
Gross |
kg |
9000 |
13000 |
15000 |
2. Machine features
2.1 Moving beam, dual-drive, Gantry high-speed milling.
2.2 Fixed table, dual drive mobile gantry, carrying capacity, small footprint.
2.3 Moving beam motion force is relatively fixed, screw, rail is not easily damaged, the whole long life.
2.4 Results of processing shaped pieces is the best .
3. main configuration
3.1 CNC system:SYNTEC 21MA.
3.2 Yaskawa servo drive motor.
3.3 Japan THK-C3 ball screw.
3.4 Japan THK precision linear guide.
3.5 Taiwan precision bearings
3.6 Taiwan direct mechanical spindle
3.7 Z-axis motor with brake function
3.8 External suspension electronic handwheel.
3.9 High-brightness light-proof.
3.10 Automatic lubrication systems.
3.11 Spindle oil cooler
3.12 CNC System Operation Manual.
Toolbox.
