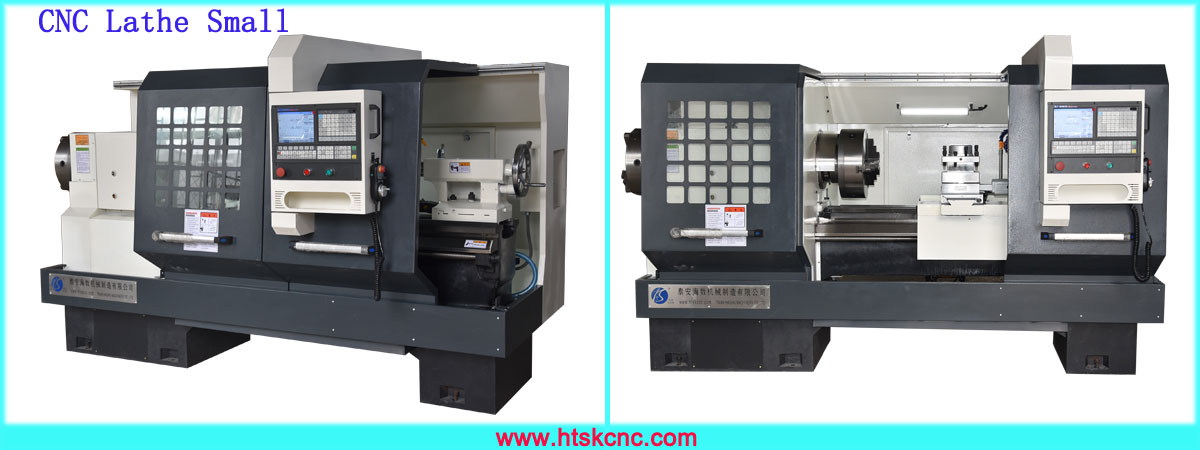

1. The large hole CNC lathe has a large hole diameter and can pass workpieces with a relatively large diameter.
2. The large-aperture CNC lathe can be equipped with two chucks to facilitate the maker of long workpieces.
3. Large-hole CNC lathes are also called CNC thread lathes, which are suitable for thread processing of petroleum pipelines and natural gas pipelines.
4. The large hole CNC lathe is equipped with GSK CNC system, and different CNC systems can also be installed according to customer requirements.
5. The large hole CNC lathe can meet many processing requirements, and can also customize the functions required by customers.
|
project |
Unit |
CDK6150 （110） |
CDK6150 （140） |
CDK6150 （160） |
CDK6150 （170） |
CDK6160 （200） | |
|
system |
Standard configuration: GSK980TC3 Optional: FANUC Oi TF; FANUC Oi Td; SIMENS 808D; KND | ||||||
|
Maximum turning diameter of bed |
Mm |
500 |
600 | ||||
|
Maximum turning diameter on tool post |
Mm |
270 |
370 | ||||
|
Maximum center distance |
Mm |
1000 | |||||
|
Bed width |
Mm |
400 | |||||
|
Spindle bore |
Mm |
110 |
140 |
160 |
170 |
200 | |
|
main motor power |
Kw |
7.5 | |||||
|
Spindle speed change form |
|
Frequency conversion stepless speed regulation | |||||
|
Spindle speed range |
r/min |
150-1000 |
70-800 |
70-700 |
70-700 |
70-600 | |
|
X/Z axis maximum stroke |
Mm |
X：310 Z：800 | |||||
|
X/Z axis fast moving speed |
Mm/min |
4000 | |||||
|
X axis motor |
Rotating speed |
r/min |
2500 | ||||
|
Torque |
N.m |
6 | |||||
|
power |
Kw |
1.5 | |||||
|
Z axis motor |
Rotating speed |
Mm |
1500 | ||||
|
Torque |
mm |
10 | |||||
|
power |
Kw |
1.5 | |||||
|
Tailstock sleeve |
diameter |
mm |
75 | ||||
|
stroke |
Mm |
150 | |||||
|
Taper |
|
Mohs 5 | |||||
|
Electric tool rest |
model |
|
HAK21192 | ||||
|
form |
|
Vertical four-station | |||||
|
size |
Mm |
192×192 | |||||
|
Tool change time |
s |
2.6 | |||||
|

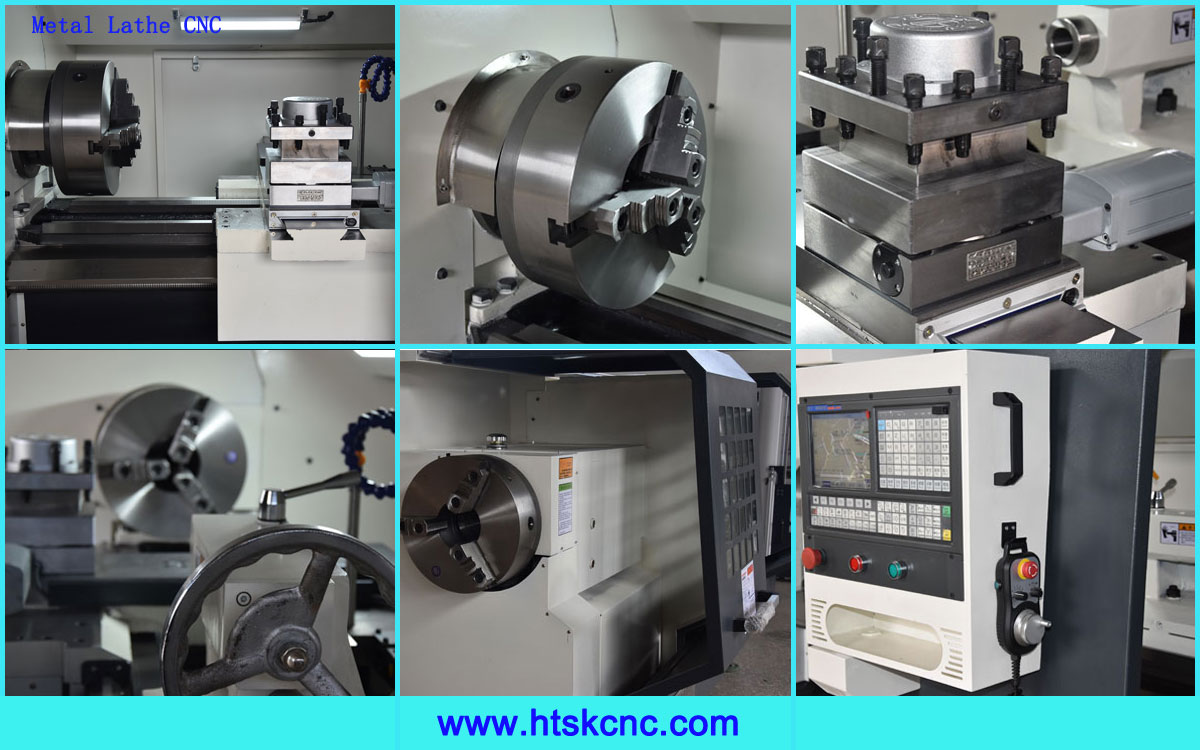

Chuck |
|
K11-320Three-jaw chuck |
K11-380Three-jaw chuck |
K11-400Three-jaw chuck |
K11-400Three-jaw chuck |
K11-500Three-jaw chuck | |
|
positioning accuracy |
Mm |
0.020 | |||||
|
Repeatability |
Mm |
0.010 | |||||
|
Machine size |
Mm |
2700×1450×1730 | |||||
|
Machine weight |
T |
2.5 |
2.7 |
2.9 |
3.0 |
3.2 | |
